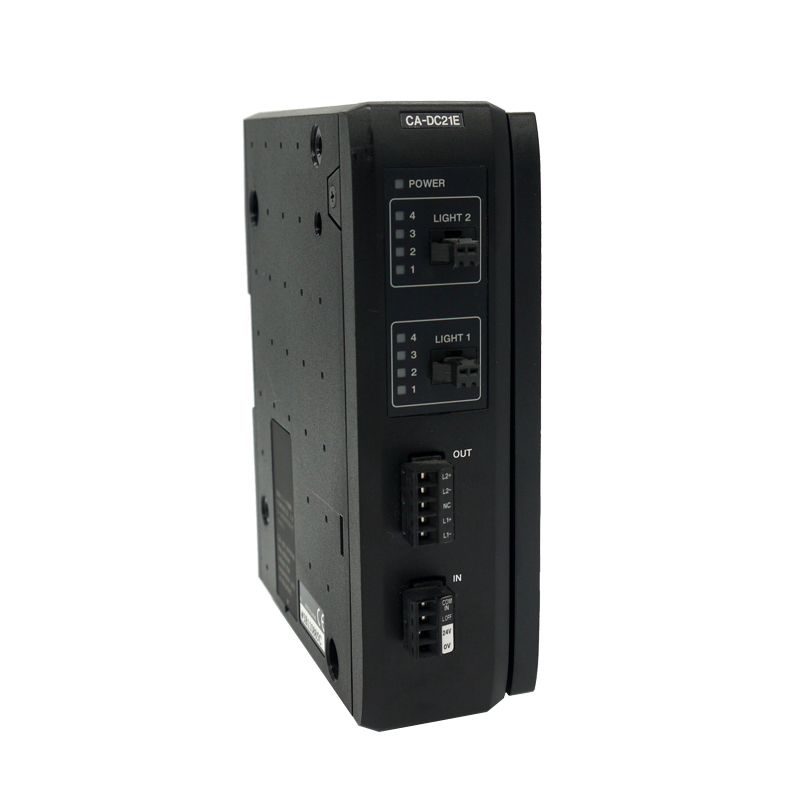

KEYENCE CA-DC21E

Model



CA-DC21E



type



Light source controller

Cv-5000 /XG/CV-X200/X100 series special



The input



Forced stop of luminescence: input rating less than 26.4V, more than 2 mA



The output



Lighting control method



(1) Constant voltage control mode (DC luminescence)

(2) Pulse width modulation (luminous frequency: 100 kHz)

[Controller Setting switch]



level



Level 255 number [Controller Settings switch]



Connection points



2 CH (FOR LED connector connection and terminal platform connection)



voltage



12 VDC/24 VDC[DIP switch switch]



capacity



Maximum 40W (only 30W /1 CH)



synchronous



Flash output synchronous/continuous luminescence [Controller setting switch]



Dimmer responsiveness



(1) Constant voltage control: 12 V output within 10 ms, 24 V output within 20 ms

(2) Pulse width modulation control: 12/24 V output within 1 MS



According to



LED display



Power display, lighting brightness display



The rated



The power supply voltage



24 VDC plus or minus 10%



Current consumption



3.0A (12V output maximum load)

6.5a (24 V maximum output load)*1



Environmental resistance



The environment temperature



0 to + 50 ° C * 2



Relative humidity



35 to 85% RH (no condensation)*2



The weight of the



About 590 g



*1 Where, the consumption current of the controller is 1.6A.

*2 The environmental resistance of the luminescent section is ambient temperature 0 to +40 °C and relative humidity 35 to 65% RH (no condensation).
